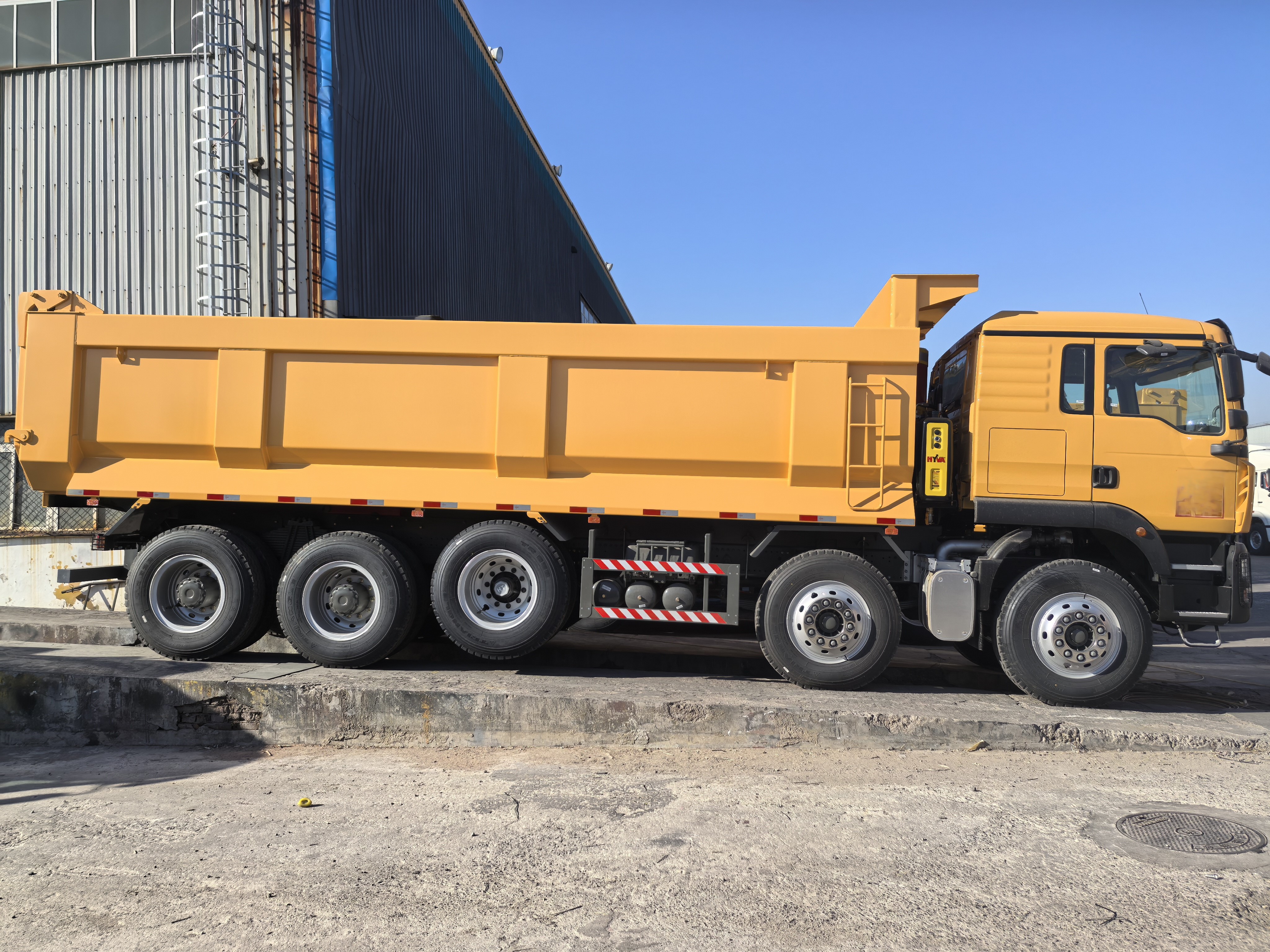

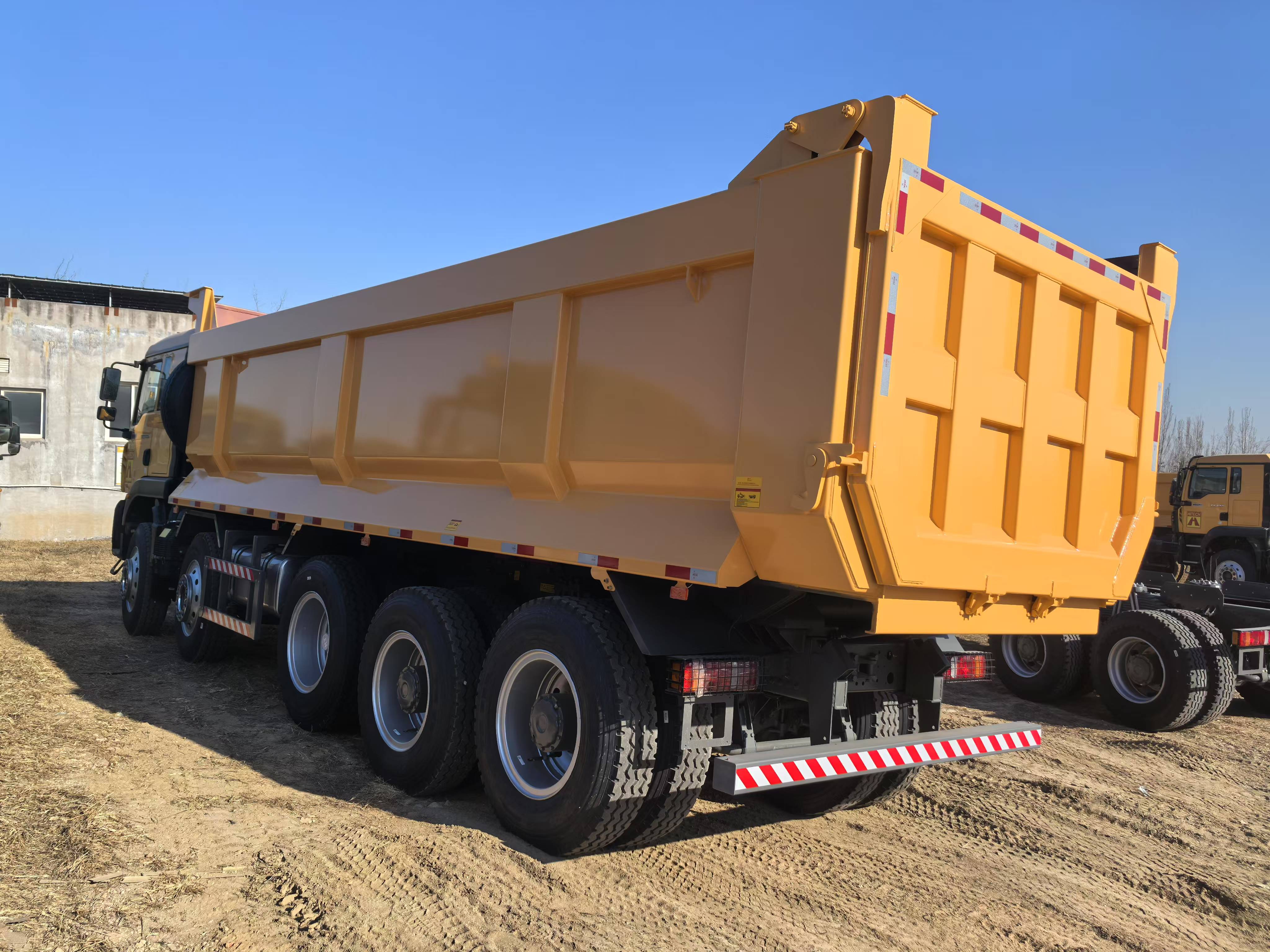

HOWO TX 10X4 DUMP TRUCK
HOWO TX 10X4 DUMP TRUCK
HOWO TX 10X4 DUMP TRUCK
HOWO TX 10X4 DUMP TRUCK
HOWO TX 10X4 DUMP TRUCK
HOWO TX 10X4 DUMP TRUCK
HOWO TX 10X4 DUMP TRUCK
HOWO TX 10X4 DUMP TRUCK

HOWO TX 10X4 DUMP TRUCK

Product Description

A cargo box of dump truck controlled by a hydraulic lifting mechanism can be removed or inclined at a certain angle so that unloading goods by themselves or by horizontal push. Mainly used for transporting loosen stuff in bulk (such as sand, soil, minerals, etc.), or integrated stuff, mainly in mining, construction sites and so on. Usually supporting the use of loaders, excavators, belt conveyors etc. It can be divided into special tippers, ordinary trippers, and mining trippers.
With the extra adjustable axle and extra 4 tires, the loading capacity of this truck increased tremendously to another 20 tons.

Basic Specification

SINOTRUK HOWO 10X4 DUMP TRUCK – 380HP
RIGHT HAND DRIVE
Model: ZZ3317V3867B1R
Made Year: Latest Model, Brand new, will be produced according to orders
Cabin: HW76, long cab, with one sleeping berth, with air conditioner, with high metal bumper, with safety belts
Engine: WP10.380E22, 380HP, Euro II, 4 stroke direct fuel injection, mechanical type, displacement: 9.726L
Gearbox: HW19710, manual, 10 F & 2 R, with HW50 PTO (power-take-off)
Front axle: VGD95, 2x9500kg, drum brake
Rear axle: MCP16ZG, 2x16000kg, drum brake, diff. ratio: 5.26

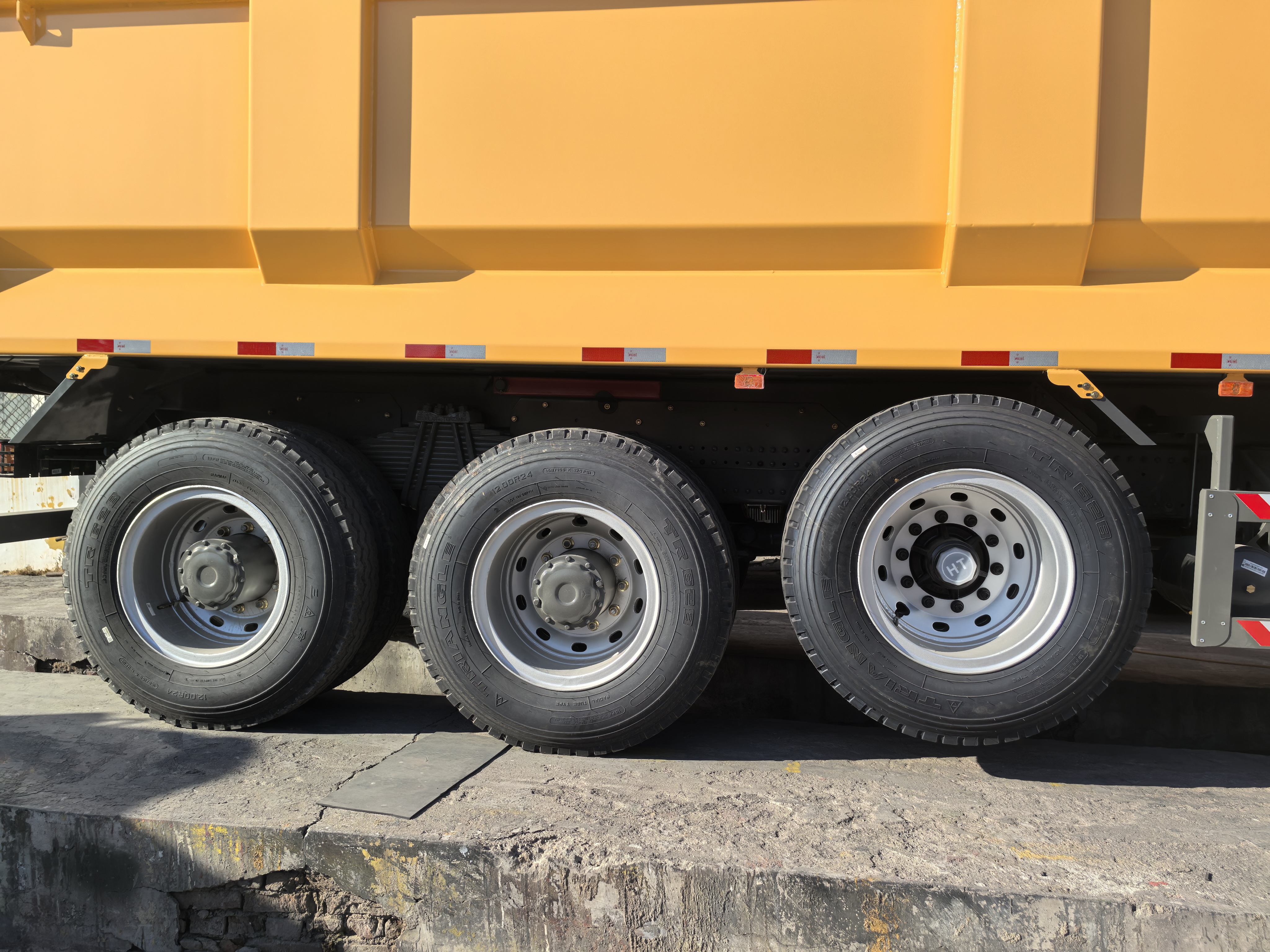

Extra Axle: 13000kg, with 4 pcs tyres, liftable
Suspension: reinforced leaf springs (Front /Rear: 11/11/12 pieces)
Frame: Double layer frame (8+8/300)mm
Tires: 12.00R20, tube, 18PR, 13 pieces (including one spare tyre)
Fuel tank: 400L, aluminum material, with locking cap
Steering: BOSCH brand, hydraulic operation with power assistance
Cargo Body: 7300*2300*1500mm, 25.19CBM, High tensile steel material, thickness of bottom plate 8mm, thickness of side plate 6mm, China Brand FRONT lifting hydraulic mechanism
WITHOUT ABS
WITH OIL BATH AIR INLET SYSTEM
WITH REVERSE BUZZER
WITH REAR TOWING HOOK AND FIRE EXTINGUISHER
With intercooler protection metallic plate
Overall Measurements: 10400x2600x3500mm
Color: White/ Grey/ Red optional
