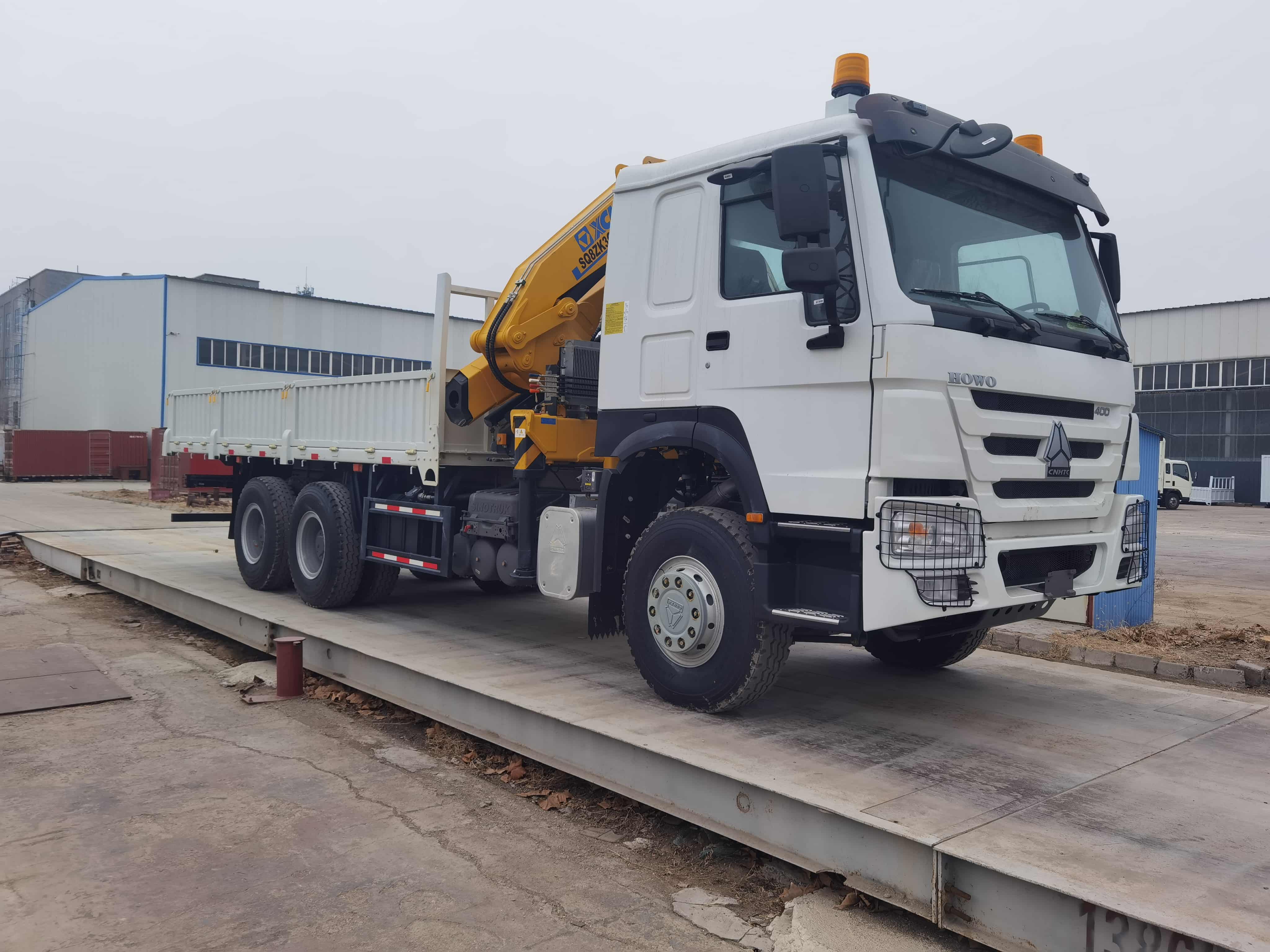

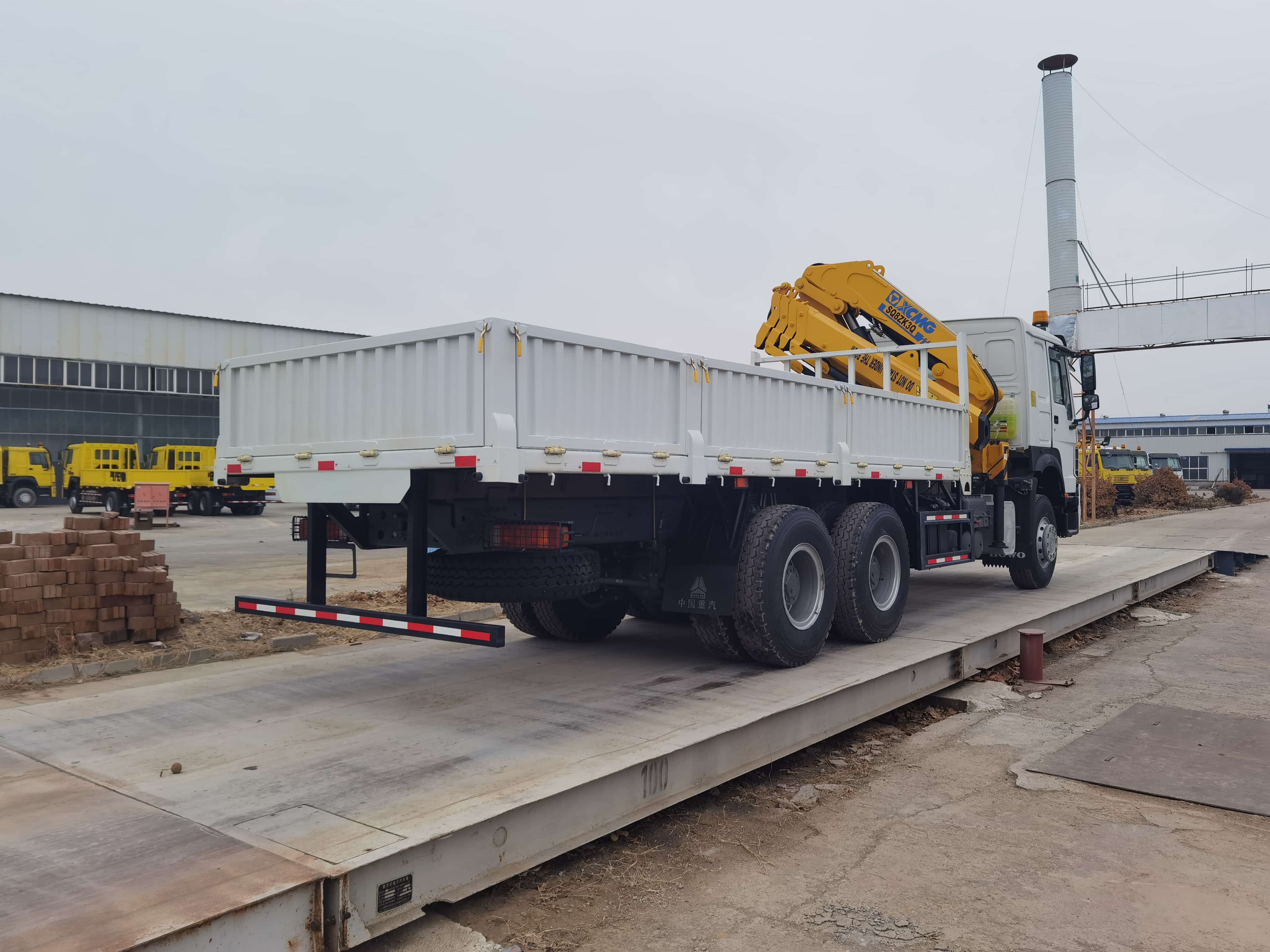

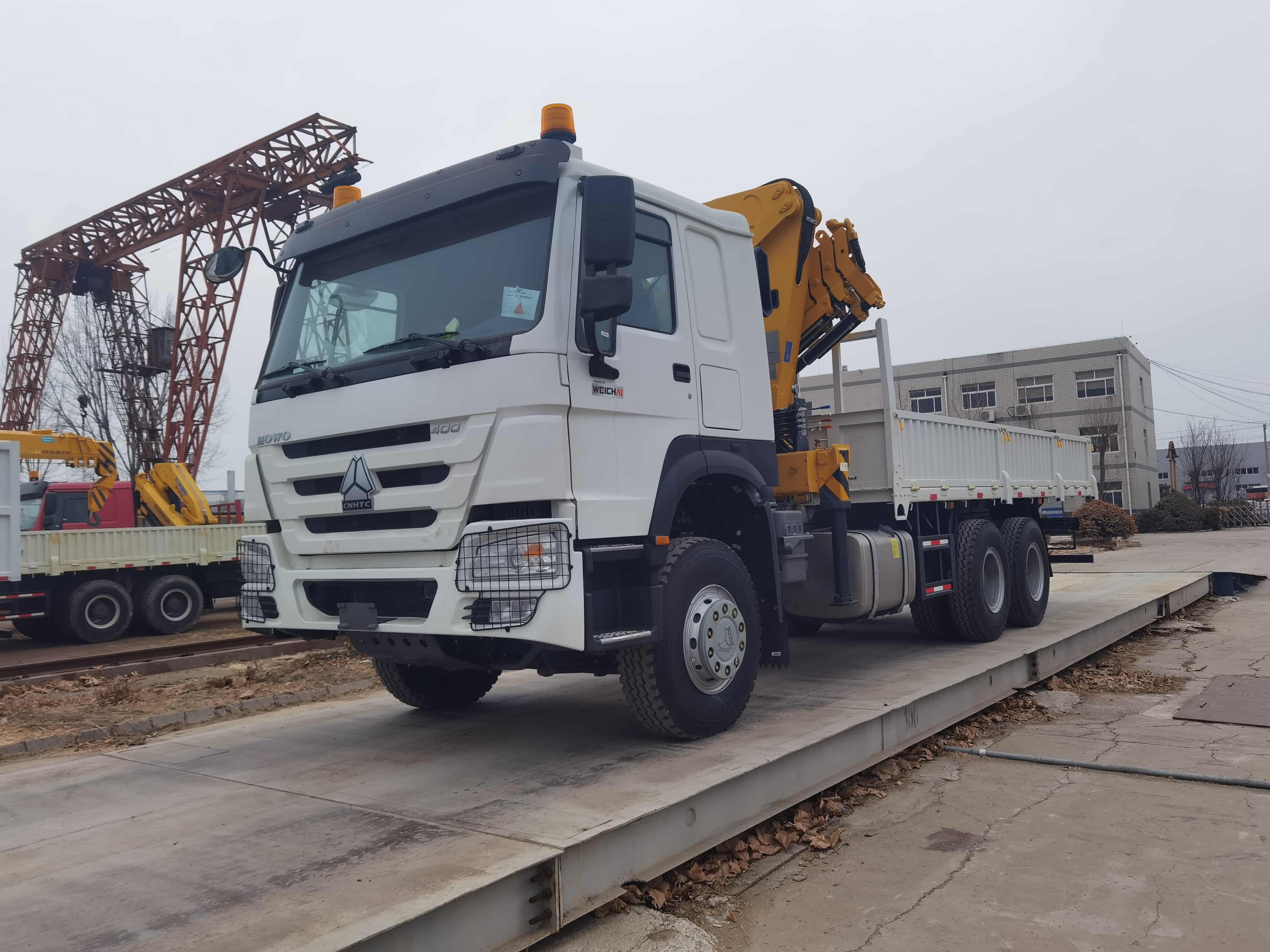

Howo-7 6×4 Cargo Truck mounted with Knuckle Crane

Howo-7 6×4 Cargo Truck mounted with Knuckle Crane

Howo-7 6×4 Cargo Truck mounted with Knuckle Crane

Howo-7 6×4 Cargo Truck mounted with Knuckle Crane

Howo-7 6×4 Cargo Truck mounted with Knuckle Crane

Howo-7 6×4 Cargo Truck mounted with Knuckle Crane

Howo-7 6×4 Cargo Truck mounted with Knuckle Crane

Howo-7 6×4 Cargo Truck mounted with Knuckle Crane

Howo-7 6×4 Cargo Truck mounted with Knuckle Crane

Product Description

A crane mounted truck, also called a truck crane or boom truck, is a vehicle designed to both transport and lift heavy loads using a crane built directly onto its chassis, allowing it to efficiently move and position large materials at construction sites, industrial facilities, and logistics hubs without the need for separate transportation equipment; essentially combining the mobility of a truck with the lifting capabilities of a crane.

Product Catalog

Basic Specification Application Related Products Message Board

Basic Specification

Sinotruk HOWO 6×4 Crane mounted Truck

Model: ZZ1257V4647B1 / ZZ1257V5867B1

Production year: New production in 2025

Cabin: single sleeper, with air conditioning, high bumper (all metal)

Engine: WP10.380E22， Euro II emissions, 380 horsepower

Transmission: HW19710+HW70 flange type 10 speed forward&2 speed reverse

Front axle: VGD95 (drum)

Drive axle: HC16 dual rear axle (drum)

Tires: 12.00R20, 13 tires (including 1 spare tire)

Fuel tank: 400L

Crane lifting capacity: Up to 22 tons

Cargo size: 6500- 8500x2300x600mm

Application

Howo Dump Trucks Service for Mine

Howo Dump Trucks Service for Mine

Dump truck is one of the most important tools used in the mine to transport raw ore blocks to refining or crushing places. For different mines, we have different configurations of dump trucks. This difference is mainly reflected in the cargo box. Some ores are in large chunks and have a high density, which means that the quality is very heavy. We know that dump trucks are generally used in conjunction with front loaders and excavators. During the loading process, it will inevitably have an impact on the dump box body, so the material of the cargo body needs to be adjusted for different minerals. A cargo body with high strength and good toughness will determine the service life of this dump truck.

Abnormal Transportation in East Africa

Abnormal Transportation in East Africa

Abnormal Transportation is frequently used when heavy-duty machines like excavator, roller, grader, articulated dump truck are transferred from site to site. With one Low-bed trailer, you can transport all kinds of machines, dual 20 feet containers or one 40 feet container and dry bulk cargo.

What is Howo Concrete Mixer?

What is Howo Concrete Mixer?

Special concrete transport trucks (in-transit mixers) are made to mix concrete and transport it to the construction site. They can be charged with dry materials and water, with the mixing occurring during transport. They can also be loaded from a "central mix" plant; with this process, the material has already been mixed prior to loading. The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.

Recommended Products

Howo-7 6x4 8x4 Cargo Truck mounted with Knuckle Crane

Howo-7 6x4 8x4 Cargo Truck mounted with Knuckle Crane

A crane mounted truck, also called a truck crane or boom truck, is a vehicle designed to both transport and lift heavy loads using a crane built directly onto its chassis, allowing it to efficiently move and position large materials at construction sites, industrial facilities, and logistics hubs without the need for separate transportation equipment; essentially combining the mobility of a truck with the lifting capabilities of a crane.

MORE

China Factory Direct 6x4 tractor truck

China Factory Direct 6x4 tractor truck

Discover the China Factory Direct Sinotruck 6x4 tractor truck, a powerhouse in the transportation realm. Engineered with precision, this truck offers robust performance for long - haul and heavy - duty tasks. Under the hood, it is equipped with a high - efficiency engine that delivers remarkable horsepower and torque, ensuring smooth acceleration even when fully loaded. The 6x4 drive configuration provides excellent traction, making it suitable for various terrains, from flat highways to rugged rural roads. Built with a durable chassis and high - quality materials, it can withstand the rigors of continuous use. Its spacious and comfortable cabin is designed with the driver in mind, reducing fatigue during long trips. With China factory - direct advantages, you get this reliable truck at a competitive price, making it an ideal choice for those seeking a cost - effective yet high - performing tractor truck solution.

MORE

Message Board

Please leave your message here! We will send detail technical info and quotation to you
